| MOQ: | 100KGS |
| Price: | USD12.45/KG |
| Standard Packaging: | Wooden Box |
| Delivery Period: | 7 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 50000KGS |
Production Description:
1. Steel Grade: Mat.No. 1.4441 AISI 316LVM

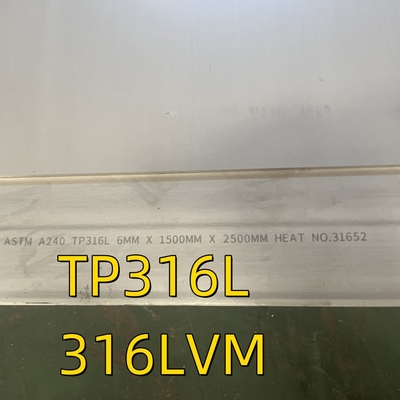

2. Product name: Mat.No. 1.4441 AISI 316LVM Stainless Steel Plate
width: 1000-3000mm
Length: 1000-12000mm
4.Heat Treatment: as required
5.Standard: ASTM,GB,JIS,DIN,BS
Steel 316LVM (Mat.No. 1.4441, DIN X2CrNiMo18-15-3, AISI 316LVM)
Designation by Standards
| Brand Name | Ravne No. | Mat. No. | DIN | EN | AISI |
| 316LVM | 332 | 1.4441 | X2CrNiMo18-15-3 | - | 316LVM |
Chemical Composition (in weight %)
| C | Si | Mn | Cr | Mo | Ni | V | W | Others |
| max. 0.03 | max. 1.00 | max. 2.00 | 17.75 | 2.95 | 14.50 | - | - | - |
Description
Implant steel with improved corrosion resistance compared to AISI 316L. Regarded as "Medical Grade", this Stainless Steel 316 is vacuum melted to achieve the extremely high levels of purity and "cleanliness" required for surgical implants. It has excellent resistance in physiological environments, to general and intergranular corrosion, to pitting and crevice corrosion.
Applications
Osteosyntheses, bone crews, bone paltes, marrow-nails. Because of the excellent surface finish, applications also include use in high precision electronics.
Physical properties (avarage values) at ambient temperature
Modulus of elasticity [103x N/mm2]: 200
Density [g/cm3]: 8.0
Thermal conductivity [W/m.K]: 14.0
Electric resistivity [Ohm mm2/m]: 0.65
Specific heat capacity[J/g.K]: 0.485
Coefficient of Linear Thermal Expansion 10-6oC-1
| 30-100oC |
| 16.5 |
Soft Annealing
Please ask.
Hardening
Please ask.
Mechanical properties at ambient temperature
Condition: Annealed
Hardness: 160 HB
0.2% proof stress: 190 N/mm2
Tensile strength: 490 N/mm2
Elongation: 45%
Condition: Medium tensile
Hardness: 285 HB
0.2% proof stress: 700 N/mm2
Tensile strength: 900 N/mm2
Elongation: 15%
Condition: High tensile
Hardness: 300 HB
0.2% proof stress: 800 N/mm2
Tensile strength: 1100 N/mm2
Elongation: 12%
Forging
Hot forming temperature: 1100-850oC.
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need
|
|
