| MOQ: | 1 t |
| Price: | Negotiation |
| Standard Packaging: | Seaworthy Package |
| Delivery Period: | 15 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 t/M |
| Product Name | 304/304L/304H Stainless Steel Plate, 304/304L/304H Stainless Steel Sheet |
| Equivalent Grade | 304: AISI 304, UNS S30400, SAE 304, DIN 1.4301, SUS 304, X5CrNi18-10 |
| 304L: AISI 304L, UNS S30403, SAE 304L, DIN 1.4306, SUS 304L, X2CrNi19-11 | |

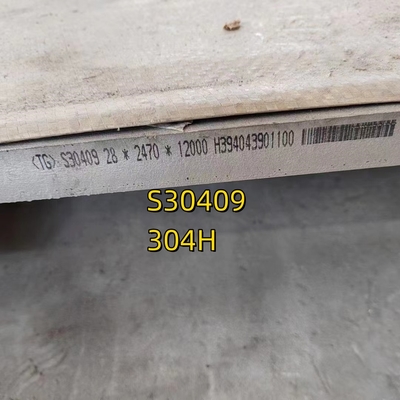

| 304H: AISI 304H, UNS S30409, SAE 304H, DIN 1.4948, SUS 304H, X6CrNi18-10 | |
| Standard | GB, AISI, ASTM, DIN, EN, JIS |
| Process | Hot Rolled, Cold Rolled, Forged |
| Sizes | Thickness: 0.3-200mm, Width: 10-4000mm |
| Surface Treatment | NO.1, 1D, 2D, 2B, NO.4, BA, HL, Mirror, Embossim, Sandblasted |
| Fabricating | Rolling, Bending, Slitting, Decoiling, Cutting, Drilling, Punching, Beveling, Welding etc. |
| Application | Oil&Gas, Petroleum, Vessels, Ship Building, Water Treatment And Environmental Protection etc. |
CHEMICAL PROPERTIES
| C | Mn | P | S | Si | Cr | Ni | Mo | N | Cu | |
| 304 | 0.07 | 2.00 | 0.045 | 0.03 | 0.75 | 17.50-19.50 | 8.00-10.5 | / | 0.10 | / |
| 304L | 0.03 | 2.00 | 0.045 | 0.03 | 0.75 | 17.50-19.50 | 8.00-12.00 | / | 0.10 | / |
| 304H | 0.10 | 2.00 | 0.045 | 0.03 | 0.75 | 17.50-19.50 | 8.00-10.5 | / | 0.10 | / |
MECHANICAL PROPERTIES
| Tensile Strength (min) | Yield Strength (min) | Elongation | Hardness, max | ||||
| ksi | Mpa | ksi | Mpa | / | Brinell.HBW | Rockwell | |
| 304 | 75 | 515 | 30 | 205 | 40 | 201 | 92HRBW |
| 304L | 70 | 485 | 25 | 170 | 40 | 201 | 92HRBW |
| 304H | 75 | 515 | 30 | 205 | 40 | 201 | 92HRBW |
About Hot Rolled
Hot rolling is a metalworking process. Such as steel ingots or billets are difficult to deform and process at room temperature, they are generally heated to 1100 to 1250° for rolling, this rolling process is called hot rolling. Most steel materials are rolled by hot rolling, the steel delivered in the hot-rolled state has a certain degree of corrosion resistance due to the high temperature, so it can bestored in the open air. In addition, hot rolling is that it can destroy the casting structure of the ingot, refine the grain of the steel, eliminate structural defects, make the steel structure dense, and improve the hardness of the hot rolled steel.
|
Product Name
|
Stainless Steel plates and sheet
|
|||
|
Material
|
201/304H/304L/321/316/316L/309/309S/310S/904Lect, Or Customized
|
|||
|
Thickness
|
1-3 mm/3-20 mm/Customized
|
|||
|
Size
|
Length:100mm-12000mm (All Sizes Can be customzied)
Width:100-2500mm |
|||
|
Standard
|
ASTM, JIS, GB, AISI, DIN, BS,EN
|
|||
|
Certifications
|
RoHS
|
|||
|
Packing
|
Industry standard packaging or according to client's requirement
|
|||
|
Brand
|
TISCO,ZPSS,ESS,Baosteel,Shandong Iron and Steel, Rizhao Iron and Steel, Xiwang Special Steel etc .
|
|||
|
Payment terms
|
30%T/T in advance, the balance against the B/L copy
|
|||
|
Delivery time
|
Fast delievery in 7 days,up to order quantity
|
|||
|
MOQ
|
1Ton
|
|||
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
|
|
