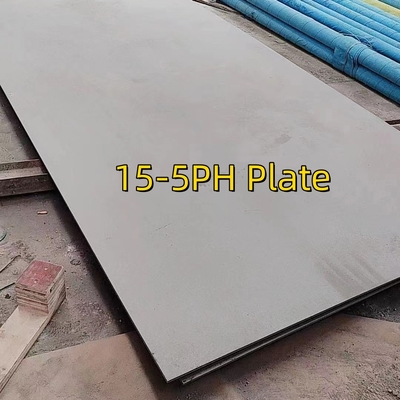

15-5PH Stainless Steel Plate With Heat Treatment H1075 Thick 10-100mm

15-5PH Stainless Steel Plate With Heat Treatment H1075 Thick 10-100mm

MOQ: 500KGS
Price: USD 3-5/KG
Standard Packaging: Wooden Box
Delivery Period: 7 Days
Payment Method: L/C, T/T
Supply Capacity: 50000KGS
Detail Information
Place of Origin
China
Brand Name
TSING SHAN
Certification
ISO MTC
Model Number
15-5PH
Grade:
15-5PH
Width:
1000-2000mm
Type:
Plate
Standard:
AISI,ASTM,JIS,DIN
Thickness:
3-100mm
Technique:
Hot Rolled
Surface:
NO.1
Edge:
Mill Edge Slit Edge
Price Term:
CIF CFR FOB EX-WORK
Item:
Stainless Steel Plate / Sheet
Highlight:

100mm Stainless Steel Plate

Product Description

15-5PH Stainless Steel Plate With Heat Treatment H1075 Thick 10-100mm

Product Name 15-5ph  stainless steel plate
Type Hot Rolled, Cold Drawn, Oil Tempered, Heat Treatment
Standard GB, AISI, ASTM, DIN, EN, SUS, UNS
Thickness 0.04-10mm
Width 5-2000mm
Price Item EXW, FOB, CIF, CFR, DDP etc
Material Inconel: Inconel100 Inconel 600 Inconel 601 Inconel602CA
Inconel 617 Inconel 625LCF Inconel 686 Inconel 690
Inconel 718 Inconel 725 Inconel X-750

Hastelloy: Hastelloy B Hastelloy B-2 Hastelloy B-3 Hastelloy C
Hastelloy C-22 Hastelloy C -4 Hastelloy C-276
Hastelloy C-2000 Hastelloy G Hastelloy G-3 Hastelloy G-35

Monel: Monel 400 Monel 401 Monel 404 Monel R405
Monel K-500
Nickel: Nickel 200 Nickel 201 Nickel 205
Nimonic: Nimonic 75 Nimonic 80A Nimonic 90 Nimonic 105
Nimonic 115 Nimonic 901

Udimet: Udimet 188 Udimet 720 Udimet R41 Udimet 300
Haynes: Haynes 230 Haynes 556 Haynes 188

Incoloy: Incoloy 800 Incoloy 800H Incoloy 800HT Incoloy 825
Incoloy 925 Incoloy 926

GH: GH2132 GH3030 GH3039 GH3128
GH4180 GH3044

Alloy : Alloy 20/28/31;
200 series: 201,202,202Cu,204Cu,

300 series: 301,303/Cu,304/L/H,304Cu,305,309/S,310/S,316/L/H/Ti,321/H,347/H,330,

400 series: 409/L,410,416/F,420/F,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
S32760,2304,LDX2101,LDX2404,LDX4404,904L;
Others: 254SMo,253Ma,F15,Invar36,1J22,N4,N6 etc.
Delivery time 5-30 days after order confirmed, according to customer's quantity.

15-5 STAINLESS STEEL



15-5 stainless steel is a martensitic, precipitation-hardening material with chromium, nickel and copper. It is often a first choice in the aerospace industry for fasteners and structural components. Its unique structure provides increased toughness and better corrosion resistance than its predecessor, 17-4 PH. Both inclusion control and a minimized amount of delta ferrite as compared to 17-4 stainless steel contribute to the greater toughness of 15-5. The alloy is further strengthened by a low temperature heat treatment which precipitates a copper containing phase in the alloy. 15-5 PH is able to meet the stringent mechanical properties required in the aerospace and nuclear industries. It is also widely used in food processing, paper, and general metalworking industries.

Chemical Formula
Carbon 0.070%, Chromium 14.0-15.50%, Columbian + Tantalum 0.15-0.45%
Copper 2.50-4.50%, Manganese 1.00%, Nickel 3.5-5.5%, Phosphorus 0.040%, Silicon 1.00%, Sulfur 0.30%





Inventory
15-5 Stainless Steel Plate, 15-5 Stainless Steel Sheet, 15-5 SS Round Bar

Common Trade names
15-5 Stainless, 15-5 Stainless Steel

Features
Corrosion Resistance: 15-5 stainless stands up excellently in a range of atmospheric environments even when exposed to corrosive elements.
Heat Resistance: 15-5 alloy being a martensitic steel hardening precipitation works well for high temperatures.
Excellent strength and toughness in high temperatures.

Applications
This alloy exhibits excellent corrosion resistance and transverse properties which make it well suited for a wide variety applications including valves, aircraft parts, gears, and pump parts.



15-5PH Stainless Steel Plate With Heat Treatment H1075 Thick 10-100mm 015-5PH Stainless Steel Plate With Heat Treatment H1075 Thick 10-100mm 1
