| MOQ: | 3 tons |
| Price: | 2.15 USD/KG |
| Standard Packaging: | Seaworthy Package |
| Delivery Period: | 22 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 2,000 tons/month |
| China * GB | GB24511 | T4003 |
| United States of America | ASTM | S40977 |
| European Union | BSEN | 1.4003 |
| Germany | DIN | X2CrNi12 |
| Southern Columbus | 3cr12 |
3Cr12 stainless steel sheet is a ferritic stainless steel containing 12% Cr, which is equivalent to the European 1.4003 grade. It is an economical ferritic stainless steel used to replace coated carbon steel, weathering steel and aluminum. It has the characteristics of simple processing and manufacturing, and can be welded by conventional welding technology. It can be used to make: motor vehicle frames, chassis, hoppers, conveyor belts, mesh screens, conveying troughs, coal bins, containers and tanks, chimneys, air ducts, and outer covers , Panels, sidewalks, stairs, rails, etc.
In order to improve the overall performance of the material, trace metal elements such as Nb and V can be added, and the total addition amount does not exceed 0.15%.

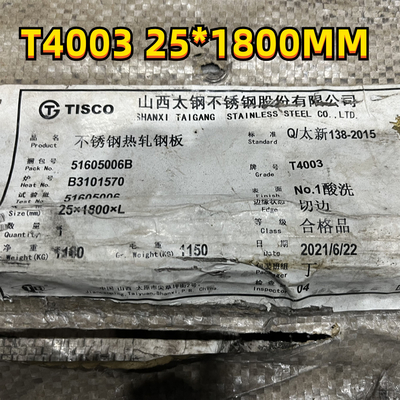

The company provides T4003, 1.4003, 3Cr12 stainless steel cold and hot rolled coils, steel plates, flat plates, and steel strips.
Carbon C: ≤0.03
Silicon Si: ≤1.00
Manganese Mn: ≤1.5
sulfur S: ≤0.015
Phosphorus P: ≤0.040
Chromium Cr: 10.5～12.5
Nickel Ni: 0.3～1.0
Nitrogen N: ≤0.030
Tensile strength σb(MPa): 450～650
Conditional yield strength σ0.2 (MPa): ≥320 (≤6mm), ≥280 (>6mm)
Elongation δ5 (%): ≥20 (≤6mm), ≥18 (>6mm)
Impact energy Akv(J): ≥50 (≥15mm), ≥35 (less than 15mm)
Hardness: ≤200 (≤12mm), ≤250 (>12mm)
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Company:
TSING SHAN STEEL is a company with several years of experience.We can provide customers with different specifications and materials for stainless pipes, alloy steel product,
round steel and non-standard thermal expansion stainless steel tubes. All the stainless steel pipes operated by our
company are in line with the national standards, and the original material list of the steel factory is attached. At the same
time, we can also handle stainless steel pipe ordering business and railway and road transportation business of various
specifications and materials for the majority of users. Mainmaterials: 301 ,304 ,304L ,304N ,304LM ,XM21 ,305 ,309S ,
310S ,316 ,316TI ,316L,316N ,316LN ,317 ,317L ,321 ,347 ,329 ,405 ,409 ,430 ,434 ,444 ,403 ,410 ,420 ,440A ,2205 ,
2207 etc.
FAQ:
Q:What kind of work does your company do?
A:Our company is a professional manufacturer.
We mainly produces stainless steel plate/pipe/coil/round bars,as well as aluminum plate/pipe/coil/bar
Q:What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
Q:What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance based on BL copy or LC at sight.If you have another question, please contact us as below
Q:What about your price?
A:Our price is very competitive because we are a factory.
Pls feel free to contact us if you are interested in our products.
|
|
