| MOQ: | 1 t |
| Price: | Negotiation |
| Standard Packaging: | Seaworthy Package |
| Delivery Period: | 15 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 t/M |
317L stainless steel is widely used in household articles (1, 2 class tableware), cabinets, indoor pipelines, water heaters, boilers, bathtubs, auto parts, medical appliances, building materials, chemistry, food industry, agriculture, ship parts.
Stainless steel is unique among metals because it already possesses many of the desired properties required of building materials, and its development continues. Stainless steel has become one of the most cost-effective materials of choice for architects as production efficiency and quality continue to improve.

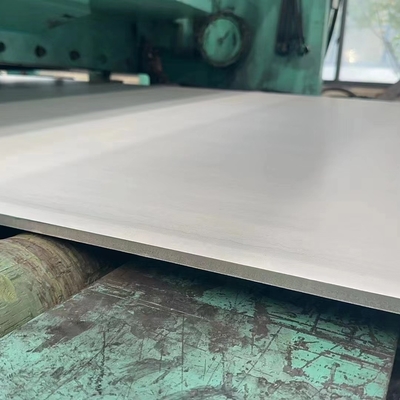

Details Images
|
Name
|
Stainless Steel Sheet/Plate
|
|
|
|
Certification
|
SGS BV
|
|
|
|
Standard
|
ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2
|
||
|
Width
|
100mm ~ 2000mm
|
||
|
Thickness
|
0.2mm ~ 100mm
|
|
|
|
Thickness/width tolerance
|
+/-0.01mm
|
|
|
|
Length
|
Customer's Requirement
|
|
|
|
Surface
|
2B,BA,8KMirror,Drawing HL,N Titanium plating,Etching,Embossing
|
||
|
Edge
|
Mill Edge Slit Edge
|
|
|
|
Grade
|
201,202,301,304,304j1,304l,321,309s,310s,2205,409l,410,410s,420,420j1,420j2,430,439,
409l,443,444,etc |
||
|
Technique
|
Cold Rolled /Hot Rolled
|
|
|
|
Application
|
Medical equipment,Food industry,Table-wares,Construction,Kitchen utensils,Chemical
industry
|
||
|
Package
|
Standard Seaworthy Package--wooden Pallet
|
|
|
|
Advantage
|
Strong Corrosion Resistance
|
||
AISI 317L ss is an alloy of iron, chromium, nickel, and molybdenum. It is an austenitic stainless steel with a higher corrosion resistance than the 304 grade and has a lower carbon content. This makes it ideal for applications in highly corrosive environments. Let’s take a look at its composition, physical properties, mechanical properties, and uses.
The composition of this Stainless Steel Grade 317L consists of 18-20% chromium and 11-15% nickel. The rest of the composition comprises iron, molybdenum, sulfur, silicon, and nitrogen. This low-carbon alloy also contains traces of phosphorus and manganese.
| Element | Content (%) |
|---|---|
| Iron, Fe | Balance |
| Chromium, Cr | 18-20 |
| Nickel, Ni | 11-15 |
| Molybdenum, Mo | 3-4 |
| Manganese, Mn | 2 |
| Silicon, Si | 1 |
| Phosphorous, P | 0.045 |
| Carbon, C | 0.03 |
| Sulfur, S | 0.03 |
This ss 317L has a ductile yield strength between 40ksi (275MPa) and 90ksi (620MPa). Its melting point ranges from 2550°F to 2635°F (1399°C to 1454°C). It has a density of 0.29 lb/in³ (8 g/cm³). Additionally, it has an electrical resistivity of 72 μΩ·m at 20°C (68°F).
| Denstiy lbm/in^3 |
Coefficient of Thermal Expansion (min/in)-°F |
Electrical Resistivity mW-in | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | ||
|---|---|---|---|---|---|---|
| at 68 °F | at 77 – 212°F | at 77 – 932°F | at 77 – 1832°F | at 68 – 1832°F | at 32 – 212°F | |
| 0.29 | 9.2 | 10.1 | 10.8 | 31.1 | 14.6 | 0.11 |
The tensile strength for this grade ranges from 65 ksi to 85 ksi (450 MPa to 590 MPa). Its modulus of elasticity is 28 x 10³ ksi (193 GPa), while its thermal expansion coefficient range is 10-6 – 10-5/K at 32–212 °F (0–100 °C). Its thermal conductivity is 9 W/(m·K) at 212 °F(100 °C).
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 595 MPa | 86300 psi |
| Yield strength | 260 MPa | 37700 psi |
| Modulus of elasticity | 200 GPa | 29000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 55% | 55% |
| Hardness, Rockwell B | 85 | 85 |
| AISI 317L | ASTM A167 | ASTM A182 | ASTM A213 | ASTM A240 |
| ASTM A249 | ASTM A312 | ASTM A774 | ASTM A778 | ASTM A813 |
| ASTM A814 | DIN 1.4438 | QQ S763 | ASME SA240 | SAE 30317L |
| Temperature Range | |||
|---|---|---|---|
| °F | °C | in/in °F | cm/cm °C |
| 68-212 | 20-100 | 8.9 x 10-6 | 16.2 x 10-6 |
grade 317l is an austenitic chromium-nickel-molybdenum grade of stainless steel with excellent corrosion resistance and formability. It is well suited for various industrial applications such as chemical, petrochemical, fertilizer, power generation, food processing, water supply systems, and medical instruments. This grade of stainless steel has exceptional resistance to sulfuric acid, making it an ideal choice for harsh environment applications such as the lining of tanks and vessels exposed to this corrosive substance. 317L stainless steel also has very good weldability and is used extensively in large structures and small components where toughness and weldability are important criteria. Due to its exceptional qualities, 317L is frequently specified in aerospace applications requiring metallurgical strength and maximum fatigue life.
Q1. Can I have a sample order for stainless steel sheet plate products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days;
Q3. Do you have any MOQ limit for stainless steel sheet plate products order?
A: Low MOQ, 1pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. For mass products, ship freight is prefered.
Q5. Is it OK to print my logo on products?
A: Yes. OEM and ODM are available for us.
|
|
