| MOQ: | 100KGS |
| Price: | USD6.45/KG |
| Standard Packaging: | Wooden Box |
| Delivery Period: | 7 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 50000KGS |
CD4MCu duplex stainless steel is classified according to its chemical composition and can be divided into four types: Cr18 type, Cr23 (excluding Mo) type, Cr22 type and Cr25 type. For Cr25 duplex stainless steel, it can be divided into common type and duplex stainless steel, among which Cr22 type and Cr25 type are more widely used.
Most of the duplex stainless steels used in my country are produced in Sweden, and the specific grades are: 3RE60 (Cr18 type), SAF2304 (Cr23 type), SAF2205 (Cr22 type), SAF2507 (Cr25 type). Alloy CD4MCu is nominally a 26Cr-6Ni alloy (C≤0.04) with additions of molybdenum and copper. There is no corresponding wrought steel grade for this alloy. Alloy CD4MCu has a dual-phase structure in the as-cast state, which is composed of austenite distributed in a ferrite matrix.
Although the carbide precipitation is limited by the carbon content of the alloy, if it is not eliminated by solution treatment, it will also be dispersed in the ferrite matrix, thereby reducing corrosion resistance. The solution treatment temperature of CD4MCu is 1120 ° C, and it should be kept for at least two hours , to ensure uniform temperature, slowly cool to 1010 ~ 1065 ºC, keep warm for half an hour, and then quench. Keeping warm at a lower temperature is to avoid cracking of castings (especially castings with thicker sections) during quenching. The structure after heat treatment is also duplex, containing 35 to 40% austenite in the ferrite matrix.
Duplex Stainless CD4MCu Applications
Superior corrosion and abrasion ability make CD4MCu ideal for varied applications in these industries:
Duplex Stainless CD4MCu Chemical Composition
| Element | Content (%) |
| Chromium, Cr | 24.5-26.5 |
| Manganese, Mn | 1-3 |
| Nickel, Ni | 4.75-6 |
| Silicon, Si | 1 max |
| Nitrogen, N | 0.20-0.25 |
| Copper, Cu | 2.75-3.25 |
| Molybdenum, Mo | 1.75-2.25 |
| Phosphorous, P | 0.040 max |
| Carbon, C | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Properties | Metric | Imperial |
| Tensile strength (min) | 690 MPa | 100 ksi |
| Yield strength (min) | 485 MPa | 70 ksi |
| Elongation (min) | 16% | 16% |
| Hardness, Brinell (max) | 290 | 290 |
CD4MCu Corrosion Resistance
The pitting corrosion resistance of CD4MCu steel is better than other Cr18-5Mo duplex stainless steel, better than austenitic stainless steel 00Cr17Ni14Mo2.
CD4McuN material duplex stainless steel structure and type
CD4McuN material duplex stainless steel has the characteristics of austenitic stainless steel and ferritic stainless steel because it has austenite + ferrite duplex structure, and the content of the two phase structures is basically the same. The yield strength can reach 400Mpa ~ 550MPa, which is twice that of ordinary austenitic stainless steel. Compared with ferritic stainless steel, duplex stainless steel has high toughness, low brittle transition temperature, significantly improved intergranular corrosion resistance and welding performance; at the same time, it retains some characteristics of ferritic stainless steel, such as 475 ºC brittleness, thermal High conductivity, small coefficient of linear expansion, superplasticity and magnetism. Compared with austenitic stainless steel, the duplex stainless steel, especially the yield strength, is significantly improved, and the pitting corrosion resistance, stress corrosion resistance, fatigue and other properties are also obvious.
CD4McuN Duplex Stainless Steel Welding Characteristics
CD4McuN duplex stainless steel has good welding performance. Compared with ferritic stainless steel and austenitic stainless steel, it is neither like the welding heat-affected zone of ferritic stainless steel, but the plasticity and toughness are greatly reduced due to severe grain coarsening , and unlike austenitic stainless steel, it is more sensitive to welding hot cracks.
Welding performance problems often occur in economical "CD4McuN material duplex stainless steel". Welding standard duplex steels is not an issue, and there are consumables for these applications regardless of the process used. From a metallographic point of view, welding 2101 (1.4162) is no problem at all, in fact it is even easier to weld than standard grade duplex steel, because this material can actually be welded with acetylene welding, while This process is always avoided for standard duplex steel materials. The practical problem with welding 2101 is that the melt pool has a different viscosity and therefore is a little less wettable. This forces operators to use arc welding more and more during the welding process, which is where the problem lies. Although this can be remedied by selecting superalloyed consumables, we often wish to select matching consumables.
| CD4MCu stainless steel pipe sizes and specifications | |
| Grade | CD4MCu |
| Specification | EN, DIN, JIS, ASTM, BS, ASME, AISI, ISO |
| Standard | ASTM A276/ASME SA276, ASTM A479/ASME SA479 & ASTM A164/ASME SA164 . |

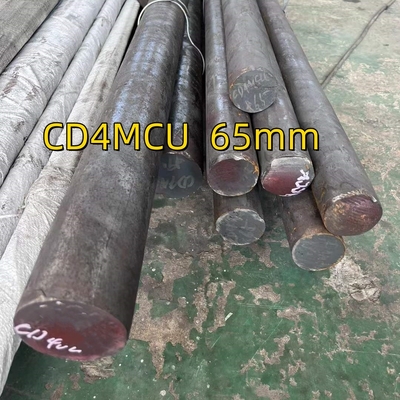

| Stainless steel round Bar | Diameter: 2mm - 600mm |
| Stainless steel bright Bar | Diameter: 2mm - 600mm |
| Stainless steel hex Bar | Dimension: 6mm - 80mm |
| Stainless steel square bar | Dimension: 3.0 - 180mm |
| Stainless steel flat bar | Thickness: 0.5mm - 200mm, Width: 1.5mm - 250 mm |
| Stainless steel angle bar | as requirements |
| Length | Normally 6m, or produce as requirements |
| Surface | Black, Bright. Peeled and Polished, Solution annealed. |
| Delivery condition | cold drawn, hot rolled, forged, grinding, centerless grinding |
| Tolerance | H8, H9, H10, H11, H12, H13,K9, K10, K11, K12 or as per clients’ requirements |
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements.
|
|
