| MOQ: | 500KG |
| Price: | 35.5 USD/KG |
| Standard Packaging: | Wooden Pallet |
| Delivery Period: | 7 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 80000KGS |
| Why you choose us? | |||
| 1. more than 20 years experiences in steel business | |||
| 2. good quality | |||
| 3. competitive price | |||
| 4. meet your needs via reprocessing | |||
| 5. excellent service | |||
| 6. short delivery time | |||
| 7. long mutual beneficial business cooperation |
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |

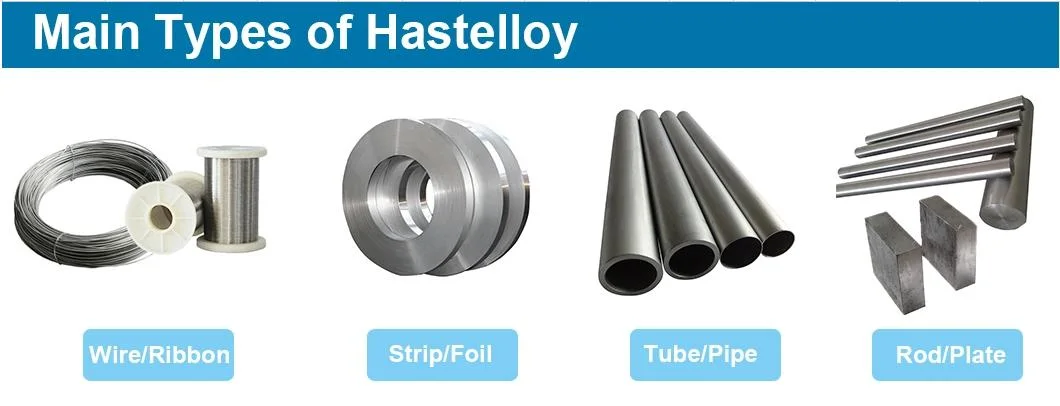

| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31; | |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g; | |
|
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188; | |
| Inconel Series: | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20; | |
| Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60; | |
| Nimonic: Nimonic 75/80A/90/A263 ; | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
| Packaging | 1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-25days or according to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders. |
HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.
APPLICATION
Digesters and bleach plants in the paper industry.
Components exposed to sour gas.
Equipment for flue-gas desulfurisation plants.
Evaporators, heat exchangers, filters and mixers used in sulfuric acid environments.
Sulfuric acid reactors.
Organic chloride process equipment.
Equipment for processes utilizing halide or acid catalysts.
| Process | Diameter | Voltage | Amperage | Gas |
| TIG | .045" (1.2mm) | 13-16 | 80-110 | 100% Argon |
| 1/16" (1.6mm) | 14-18 | 90-130 | 100% Argon | |
| 3/32" (2.4mm) | 15-20 | 120-175 | 100% Argon | |
| 1/8" (3.2mm) | 15-20 | 150-220 | 100% Argon | |
| MIG | .045" (1.2mm) | 28-32 | 180-220 | 75% Argon + 25% Helium |
| 1/16" (1.6mm) | 29-33 | 200-250 | 75% Argon + 25% Helium | |
| SAW | 3/32" (2.4mm) | 28-30 | 275-350 | Suitable Flux may be used |
| 1/8" (3.2mm) | 29-32 | 350-450 | Suitable Flux may be used | |
| 5/32" (4.0mm) | 30-33 | 400-550 | Suitable Flux may be used |
|
Hastelloy
|
Density
g/cm3
|
Melting point
ºC
|
Elongation A5 %
|
Tensile Strength
Rm N/mm2
|
Yield Strength
RP0.2N/mm2
|
|
C-276
|
8.9
|
1325-1370ºC
|
62
|
758
|
363
|
|
C-22
|
8.9
|
1325-1370 ºC
|
40
|
690
|
283
|
|
C-2000
|
8.5
|
1399ºC 2550°F
|
45
|
690
|
283
|
|
B-2
|
9.2
|
1330-1380ºC
|
40
|
745
|
325
|
|
B-3
|
9.22
|
1370-1418ºC
|
40
|
760
|
350
|
|
G-30
|
8.22
|
1399ºC 2550°F
|
62
|
524
|
200
|
|
X
|
8.3
|
1260-1355ºC
|
30
|
690
|
/
|
|
C-4
|
8.64
|
399°C 2550°F
|
40
|
690
|
280
|
|
G-35
|
8.22
|
1370-1400ºC
|
/
|
/
|
/
|
|
C
|
8.94
|
1330-1380 ºC
|
40
|
690
|
310
|
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for plate, and our company also is a very professional a trade company for steel products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.
Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by worker piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.
|
|
