| MOQ: | 100KGS |
| Price: | 3.15 USD/KG |
| Standard Packaging: | Export Packing |
| Delivery Period: | 7 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 50000KGS |

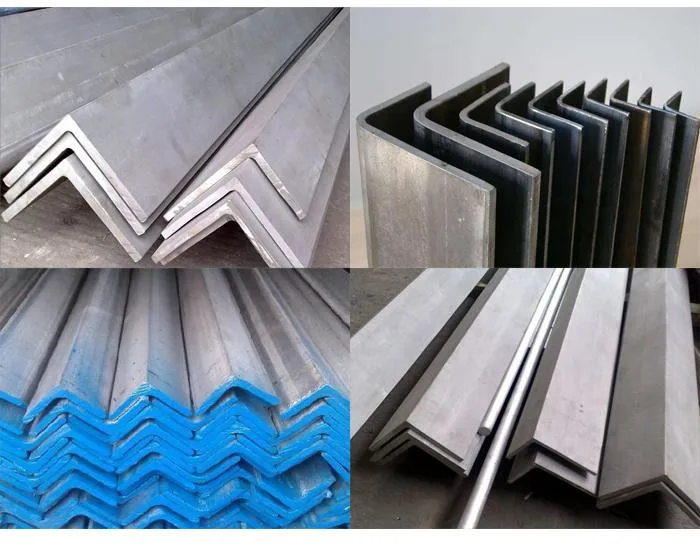

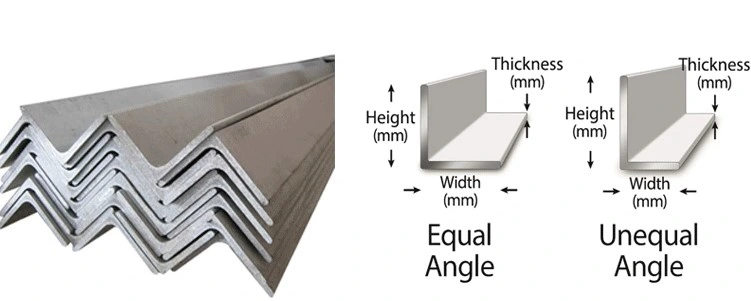

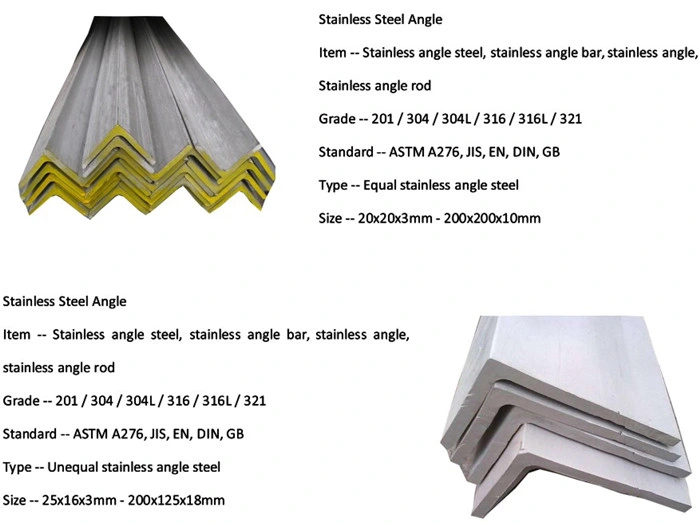

| Product Name | L shape profile stainless 304 angle steel 201 304 316 stainless angle bar |
| Technique | Hot rolled |
| Material | Stainless steel 201,304,304L,316,316L,321,410,430,904L,2205,etc |
| Size | 20x20x3-250x250x35 |
| Surface | NO.1,Pickled,Polished,Coated,Bright |
| Standard | GB/T228-87,JISZ2201,JISZ2241,ASTMA370,BS18,DIN50145,GB/T232-88,JISZ2204,JISZ2248,ASTME290,DIN50111 |
| Certificates | SGS,BV,ISO,ROSH,etc |
| Additional services | Cutting, Welding, Punching,etc |
Normal size range and tolerance
|
size A*B
|
Size allow-able deviation
|
Thickness
|
|||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
|
Thickness allowable deviation
|
|||||||||||
| 25*25 | ±1.5 | ±0.5 | ±0.5 | ±0.5 | |||||||
| 30*30 | ±2.0 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ||||||
| 40*40 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ||||||
| 50*50 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ||||||
| 60*60 | ±3.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ||||||
| 65*65 | ±3.0 | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 | |||||
| 70*70 | ±3.0 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ||||
| 75*75 | ±3.0 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | |||||
| 80*80 | ±3.0 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | |||||
| 100*100 | ±4.0 | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 | ||||
Chemical Composition(%)
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu | |
201 |
≤0.15 |
≤0.75 | 5.5~7.5 | ≤0.060 | ≤0.03 | 16.00~18.00 | 3.5~5.5 | - | - | 0.08 | 1.5 |
| 202 | ≤0.15 | ≤1.00 | 7.5~10.00 | ≤0.060 | ≤0.03 | 17.00~19.00 | 4.0~6.0 |
- |
≤0.25 | ||
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 6.00~8.00 | - | |||
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 17.00~19.00 | 8.00~10.00 | - | |||
| 304 | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 8.00~10.50 | - | |||
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 18.00~20.00 | 9.00~13.00 | - | |||
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 24.00~26.00 | 19.00~22.00 | - | |||
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 10.00~14.00 | 2.00~3.00 | |||
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 16.00~18.00 | 12.00~15.00 | 2.00~3.00 | |||
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 17.00~19.00 | 9.00~13.00 | - | |||
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.03 | 16.00~18.00 | - | ||||
| 2205 | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.015 | 22.00~23.00 | 4.5~6.5 | 2.5~3.5 | |||
| 2507 | ≤0.03 | ≤0.08 | ≤1.20 | ≤0.035 | ≤0.015 | 24.00~26.00 | 6.00~8.00 | 3.0~5.0 | |||
| 904L | ≤0.02 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.035 | 19.00~23.00 | 23.00~28.00 | 4.0~5.0 | 1.0~2.0 |
||
INCONEL 028 |
≤0.03 |
≤1.00 | ≤2.50 | ≤0.030 | ≤0.030 | ≤28.0 | ≤34.0 | ≤4.0 | ≤1.4 | ||
MONEL 400 |
≤0.30 |
≤0.5 | ≤2.00 | - | ≤0.024 | - | ≥63.0 | - | ≤34.0 | ||
INCONEL 800 |
≤0.10 |
≤1.00 | ≤1.50 | - | ≤0.015 | ≤23.0 | ≤35 | 4.0~5.0 | - | ≤0.75 | Ti≤0.6 Al≤0.6 |
More Products
Applications
1).Showing the splendor of your quality,
2).wear-resistant as well ,
3).strong corrosion resistance and decorativeeffect,
4).durable and beautiful in good taste.
Loading information
| 20' container | 40' container | ||
| Length | 19'41/4"(5.899m) | Length | 39.5"-3/8(12.02m) |
| Width | 7.8"-5/8(2.352m) | Width | 7'8"-5/8(2.35m) |
| Height | 7'10"(2.386m) | Height | 7'10"(2.38m) |
| Max loading Weight | 27tons | Max loading Weight | 27tons |
| Max loading length | 5.8m | Max loading length | 12m |
| Max loading volume | 28m3 | Max loading volume | 57m3 |
TSING SHAN is a professional manufacturer engaged in the research,development,production,
sale and service of stainless steel sheet, stainless steel pipe, bar, coils. We are located in Wuxi City with
convenient transportation access. Our factory have rich experience in producing as we are engaged in
domestic market for more than 20 years.
Our advantages.
Quality Assurance: To provide quality products at the same time to improve after-sales service
One-stop Service: We have a compatible and experienced R&D team.
Independent factor: We have our own factory and give the best price.
Professional Team: Professional team to provide you with efficient service.
Q1. What are your company's main products ?
A1: Our main products are stainless steel, carbon steel, galvanized steel, aluminium steel, ppgi steel products, including sheets, pipes, coils, strips, bars and channels.
Q2. What are the advantages of your company ?
A2: We guarantee that the quantity and specification of products are in full compliance with the standards of customer orders. We support any kinds of test. In addition, We also have more professional service and competitive price.
Q3. How do you control quality ?
A3: We provide Factory Test Report, also support Third Party Inspection.
Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly from Middle East, Russia, United States, Canada, Italy, Germany, Poland, Australia, Egypt, UAE, Sri Lanka, Kuwait, Indonesia, Mexico, Venezuela, Chile, Argentina, Colombia, etc.
Q5. Can you provide sample ? Do you support OEM ?
A5: Yes. Small samples in store can be provided for free. Customized samples will take about 2-3 days.
Q6: What's your payment terms ?
A6: By T/T, L/C (30% deposit in advance, balance 70% before shipment), Western Union, Paypal, or Trade Online.
|
|
