| MOQ: | 1 t |
| Price: | Negotiation |
| Standard Packaging: | Seaworthy Package |
| Delivery Period: | 15 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500 t |
Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*
| Element | 439 |
| Carbon | 0.030 |
| Chromium | 17.0-19.0 |
| Nickel | 0.50 |
| Manganese | 1.00 |
| Silicon | 1.00 |
| Nitrogen | 0.030 |
| Phosphorus | 0.040 |
| Sulfur | 0.030 |
| Aluminum | 0.15 |
| Titanium | 0.20 +4(C+N) min 1.10 max |
Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240
| Property | 439 |
| Yield Strength, min. (ksi) | 30 |
| Tensile Strength, min. (ksi) | 60 |
| Elongation, min. (%) | 22 |
| Hardness, max. (Rb) | 89 |
Physical Properties
Physical properties for Type 439 stainless steel
| Property | 439 |
| Density, lb/in3 | 0.278 |
| Modulus of Elasticity, psi | 29.0 x 106 |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 5.6 x 10-6 |
| Thermal Conductivity, Btu/ft hr ˚F | 14.0 |
| Specific Heat, Btu/lb ˚F | 0.11 |
| Electrical Resistivity, Microohm-in | 24.8 |

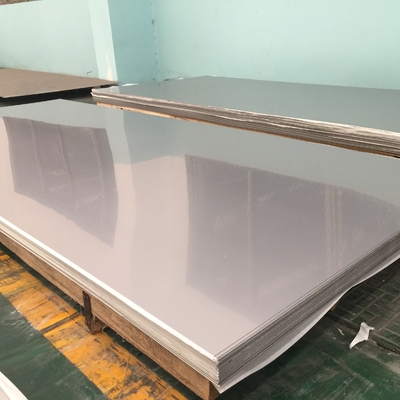

| Item Name | Stainless Steel Plate |
| Material Grade |
201,301,302,303,304,304L,316,316L,321,308,308L,309,309L,309S,309H, 310,310S ,410,430,2205,409 etc |
| Variety |
Soft wire,hard wire,spring wire,electrode wire,cold heading wire,electrolytic wire,welding wire etc |
| Size |
customized Special specifications can also be produced according to drawing and sample |
| Si Content (%) | standard level |
| C Content (%) | standard level |
| Length | As per requirement |
| Color | Silver,black wither bright |
| Quality | Top |
| Certification | ISO9001 |
| Application | wire-drawing, weaving of wire mesh, soft pipe, bean of cabinet, steel wire,etc. |
| Packing |
Exportsea worthy packing with each bundle tied and protected, Or as to clients' requirements. |
| Price | Negotiable |
|
|
