| MOQ: | 100KGS |
| Price: | USD34.45/KG |
| Standard Packaging: | Wooden Box |
| Delivery Period: | 7 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 50000KGS |

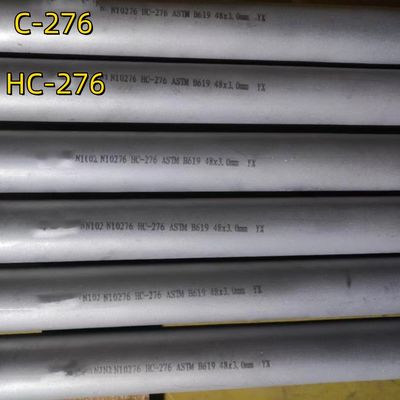

Hastelloy C276 (UNS N10276)is a type of wrought nickel-molybdenum-chromium alloy with the addition of Tungsten. offers good resistance to oxidizing and moderate reducing corrosion. At the same time, it has excellent resistance to stress corrosion cracking and good resistance to local corrosion. It has satisfactory corrosion resistance in many chemical process media, including highly etched inorganic acid solution, chlorine gas and chlorinated various media, dry chlorine gas, formic acid and acetic acid, seawater and brine, etc. C-276 alloy tube is one of the only materials that can resist the corrosion of wet chlorine, hypochlorite and chlorine dioxide solution.
Density:8.89 g/c㎡
Melting range:1325-1370℃
Size: OD 25～320mm
W.T: 0.5 - 100mm
Length: 5.8m, 6m, 11.8m, 12m
Type: Seamless/welded
Standards:
Seamless Pipe / Tube: ASTM B622, ASME SB622
Welded Pipe / Tube: ASTM B619, ASME SB619, ASTM B626, ASME SB 626
Hastelloy C276 Equivalent Material
| UNS | JIS | DIN | EN | GB |
| UNS N10276 | NW 0276 | NiMo16Cr15W | 2.4819 | NS334 |
Chemical Composition, %
| Ni | Cr | Mo | W | Co | P | S | V | Fe |
| 57.0 | 15.5 | 16.0 | 3-4.5 | 2.5 max | 0.040 max | 0.030 max | 0.35 max | 5.5 |
Mechanical Properties
| Tensile strength, Mpa | Yield strength, 0.2% offset, Mpa | Elongation, % | Hardness, Rockwell |
| ≥690 | ≥283 | 40 | 88 |
Applications
Transmission lines, evaporators, acetic acid reactors, heat exchangers, reaction vessels, equipment and components operating in an acidic gas environment, sulfuric acid condensers in the nuclear energy industry, chemical treatment, chemical and petroleum industries.
We supply and manufacture high-quality Heat resistant Hastelloy C276 alloy seamless and welded pipes in accordance with EN, DIN, ASTM, GB standards, specified delivery conditions and final customer specifications for industrial and commercial applications. Special sizes of nickel pipes and delivery issues can be further negotiated and we provide a wide range of solutions for purchasing departments to select alternative grades without specifying product specifications.
Q1:What product information must I provide before making a purchase?
Please provide the Grade, Outside Diameter, Thickness, and surfacetreatment requirements, as well as the quantities you require.
Q2:What shipping ports are there?
We normally ship from Shanghai and Ningbo ports.
Q3:What are your payment terms?
30% T/T in advance and 70% balance before shipment or based on BL copy or LC at sight.
Q4:What about product pricing information?
Prices vary due to changes in raw material prices on a regular basis.
Q5:Is it possible to send samples?
Of course, we offer free samples and express shipping to customers all over the world.
Q6:Do you offer a service for customized products?
Yes, we can produce according to your specifications and drawings.
|
|
